6 axis industrial automation welding MIG welding robot arm

Short Description:

This robot is belongs to Model A in the 1500mm series

Model:BR-1510A

1.Arm span: about 1500mm
2.Maxpayload:6KG
3.Repeatability:±0.08mm

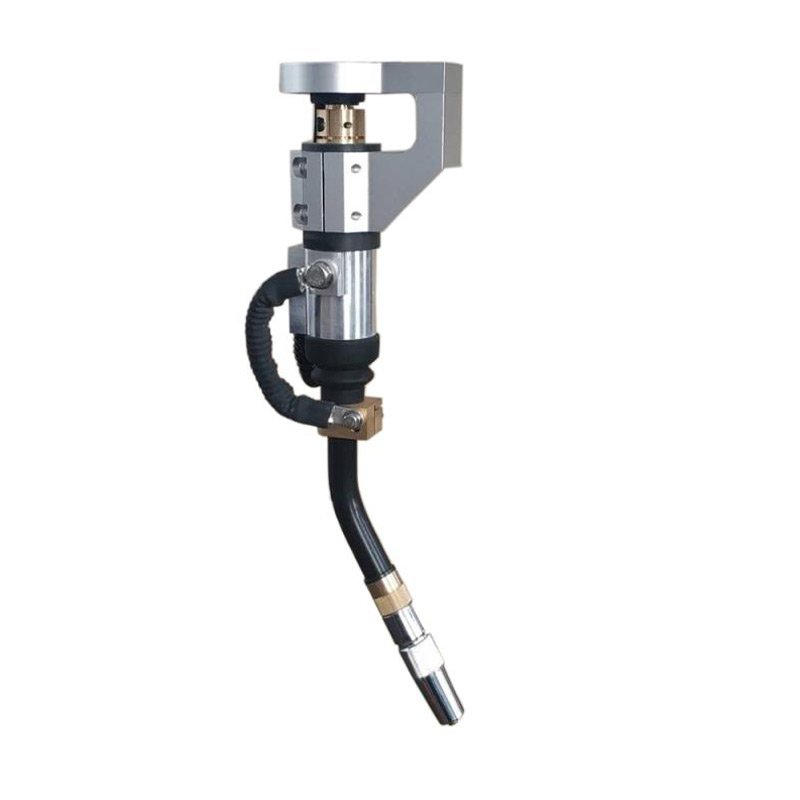

4.Torch: Water cooling with anti-collision

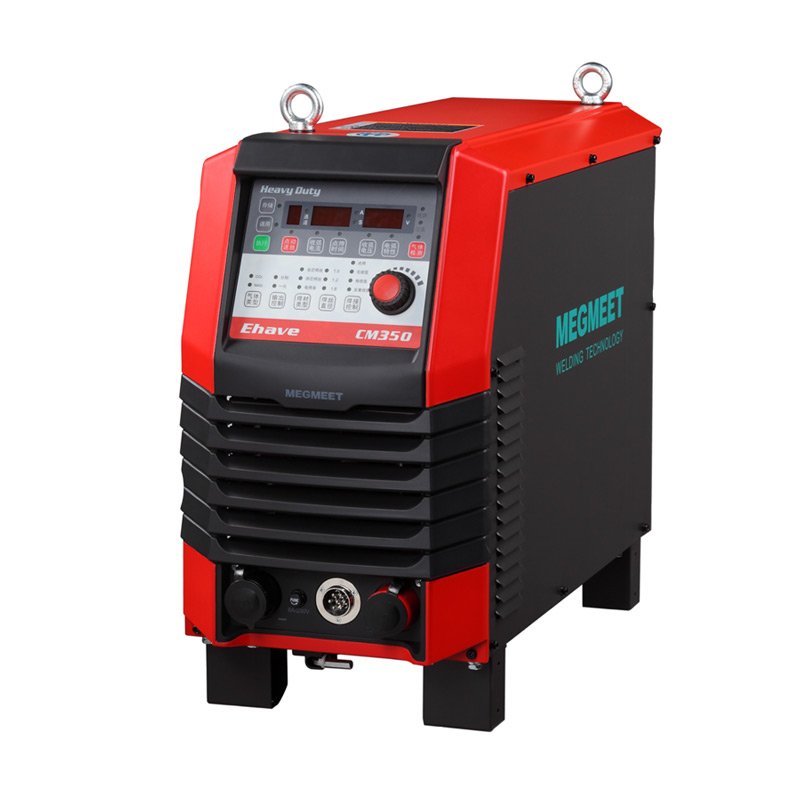

5.Power source :Megmeet Ehave CM350AR
6.Applicable Materials：Carbon Steel,Cold rolled steel

Send email to us

Product Detail

Product Tags

Characteristics

-Die casting process, aluminum arm ,Lighter and more flexible
-Internal wires and terminals of the robot are made by the top Japanese brands: DYEDEN, TAIYO, the same as ABB and Fanuc
-Top Chinese brand of the core parts
-Welding torch with highly sensitive anti – collision device, greatly extend the service life of the torch
-The machine maintenance is simple and easy to operate, and the designed service life is more than 10 years

Application parameters reference

Welding parameters reference for mild steel and low alloy steel
type	plate thickness（mm)	Wire diameter Φ（mm)	root gap g（mm)	welding current （A）	welding voltage （V）	welding speed （mm/s）	Contact tip-workpiece distance （mm）	Gas flow （L/min）
Type I Butt Welding (low speed condition)	0.8	0.8	0	60～70	16～16.5	8～10	10	10
	1.0	0.8	0	75～85	17～17.5	8～10	10	10～15
	1.2	0.8	0	80～90	17～18	8～10	10	10～15
	1.6	0.8	0	95～105	18～19	7.5～8.5	10	10～15
	1.6	1.0	0～0.5	120～130	19～20	8.5～10	10	10～20
	2.0	1.0, 1.2	0～0.5	110～120	19～19.5	7.5～8.5	10	10～15
	2.3	1.0, 1.2	0.5～1.0	120～130	19.5～20	7.5～8.5	10	10～15
	2.3	1.2	0.8～1.0	130～150	20～21	7.5～9	10	10～20
	3.2	1.0, 1.2	1.0～1.2	140～150	20～21	7.5～8.5	10～15	10～15
	3.2	1.2	1.0～1.5	130～150	20～23	5～6.5	10～15	10～20
	4.5	1.0, 1.2	1.0～1.2	170～185	22～23	7.5～8.5	15	15
	4.5	1.2	1.0～1.5	150～180	21～23	5～6	10～15	10～20

Note:
1. MIG welding uses inert gas, mainly used for welding of aluminum and its alloys, copper and its alloys, titanium and its alloys, as well as stainless steel and heat-resistant steel. MAG welding and CO2 gas shielded welding are mainly used for welding carbon steel and low alloy high strength steel.
2. The above content is for reference only, and it is best to obtain the optimal welding process parameters through experimental verification. The above wire diameters are based on actual models.
