When sending all the workpiece details info. to the robot supplier, they will help you make a professional judgment which product model is suitable for your workpiece, or choose some related products according to your needs.
For example, according to the welding method, the thickness of the workpiece material needs to choose a welding machine with different models and functions.

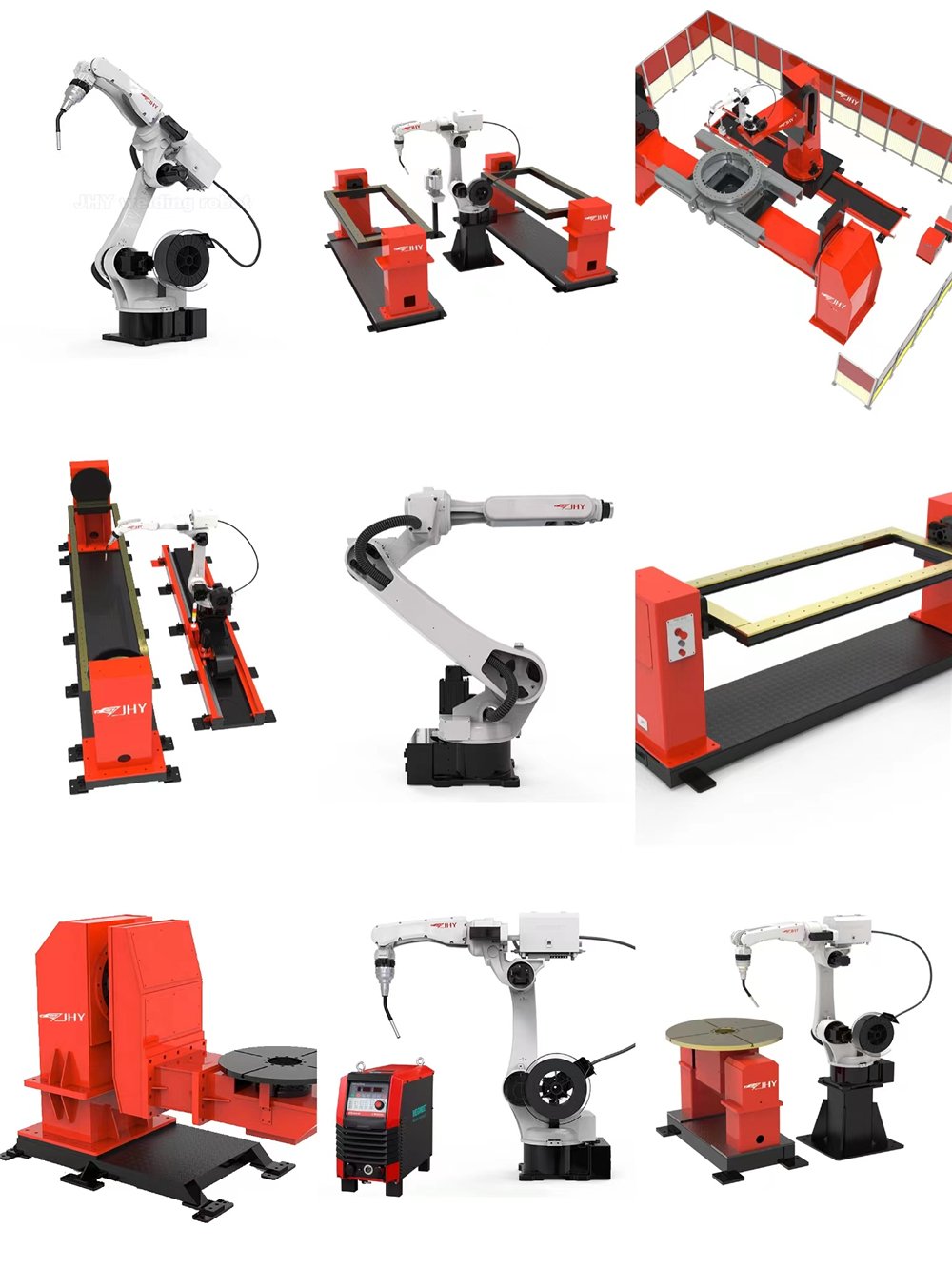

According to the size of the workpiece, choose the robot with the largest arm span.
According to the welding position, size and weight information of the workpiece, it is judged whether a rotatable welding positioner is needed.
Choose the welding table according to the welding position, size and weight of the workpiece. If the welding seam position of the workpiece is easy to reach and the welding direction is single, you can use a three-dimensional table like a work table.
If the front and back of the workpiece are to be welded, or the pipe fittings need to be round welded, you can choose a rotatable welding positioner. There are many types of welding positioners, which can be rotated horizontally or up and down, and have different loads, such as 300kg, 500kg, and 1000kg. The worktable can also be selected according to the size of the workpiece.
If the workpiece is too long, a moving ground rail is needed to extend the robot's range of motion.
After the welding gun is welded for a period of time, there will be a lot of welding slag attached to the inside of the nozzle, and the ball formed after the tip of the welding wire melts will affect the welding effect. It is necessary to clean up the welding slag and trim the ball in time. At this time, it is best to equip an automatic The gun cleaning station is used to complete the gun cleaning, wire cutting, and oil spraying work.
