mig tig welding robot arm with 2 axis rotator

Short Description:

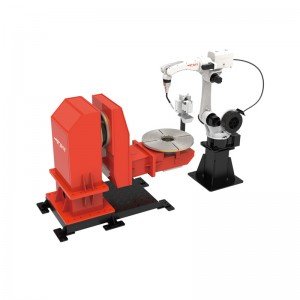

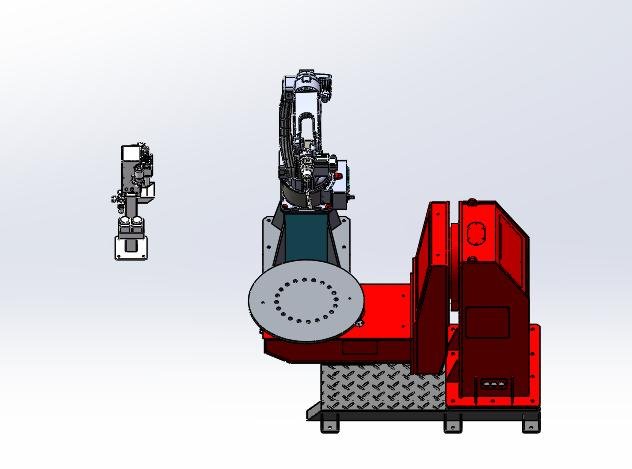

This welding robot station consists of one 6 axis welding robot and one 2-axis welding table.Greatly improve working efficiency.

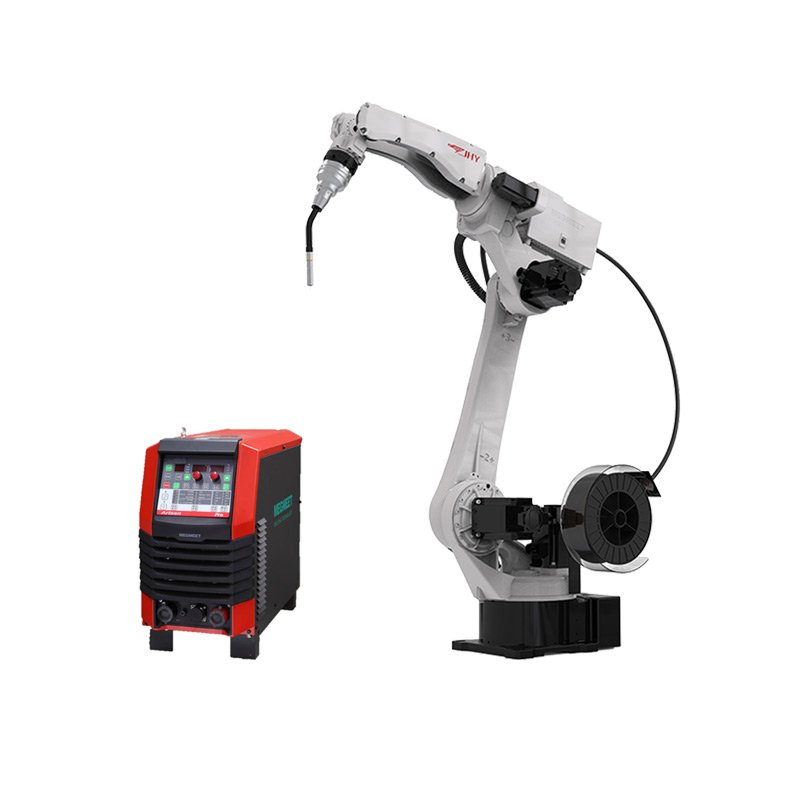

1.JHY mig tig industrial robot

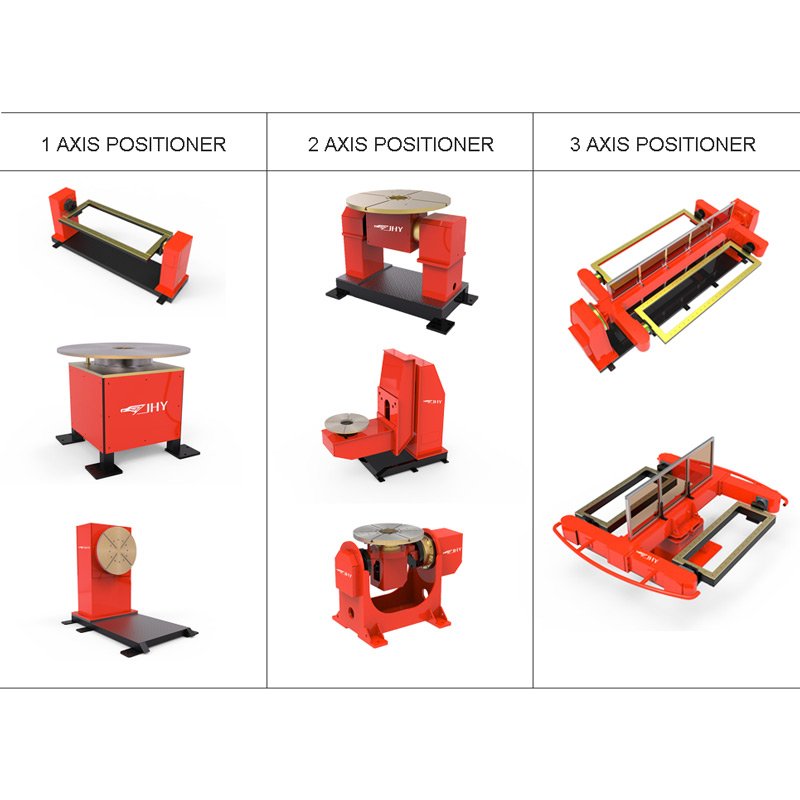

2.2-axis welding positioner
3.Welding gun cleaner

Send email to us

Product Detail

Product Tags

Description

It is suitable for automatic welding, seam welding and penetration welding of various large sheet metal parts and complex parts.

The robotic have passed the patent certification of China Intellectual Property Office, and export CE certification.

The payload and turntable size of the 2-axis positioner can be customized.

This robot welding station commonly configures simple equipment with flexible layout. You can change station layout according to situation on the ground. The peripheral equipment you can choose include: clean torch station, rotate positioner, laser tracking system, remote control box, etc. We can offer free technology training.

Positioner technical parameter

Model	JHY4050L-080
Rated Input Voltage	Single-phase 220V, 50/60HZ
Motor Insulation Calss	F
Work Table	Diameter 800mm (can be customized)
Weight	About 400kg
Max. Payload	Axial Payload ≤500kg / ≤1000kg (＞1000kg can be customized)
Repeatability	±0.1mm
Stop Position	Any Position

Material

Stainless Steel Welding
Aluminium Welding
Carbon Steel Welding
Galvanized tube/pipe/plate welding
Cold Roll Welding

Application

Auto parts,bicycle parts, car parts, steel furniture, new energy,steel structure, construction machinery,fitness equipment,etc.

Package: Wooden cases
Delivery time: 40 days after prepayment received

FAQ

Q: What information should I provide so you can recommend a suitable robot for me?
Answer: Please provide the detailed drawings of the workpiece, including the material, thickness, welding position, dimensions and weight of workpiece,.

Q: Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.

Q: Can you show me some application videos?
Answer: Sure. You can watch all our application videos on our Youtube chanel by searching”JHY industrial robot” or ask our sales to send you.

Q: I want to know the welding quality for our product, what should I do?
Answer: You can send your samples to our factory to do test welding. After testing welding, we will send the welding video and pictures to you for reference. Also we will send the samples back to you for verification.
