High efficient 3 axis rotating welding positioner

Short Description:

The positioner is able to rotate the workpiece to the most appropriate welding position.in order to achieve optimum welding effect.Greatly improve working efficiency.

1.Model: JHY4030S-180

2.Payload: 300kg

3.Worktable size: 1800*800mm

4.Control by robot control system or PLC cabinet


Product Detail

Product Tags

Positioner Dimensions

img-1

Description

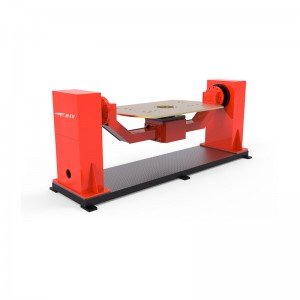

● This 3 axis positioner is composed by worktable rotation unit, frame horizontal rotation unit and electric control system.
● 2 worktabes on one positioner, work just load and unload workpiece on one side, work efficient great improved and space compressed
● The movement of positioner can be quick controlled by the start and stop button.
● Can be adapted to other brands of robots like Fanuc,ABB,KUKA,Yaskawa.(motor drawing need to be offered by customers,then we leave the installation hole based on the motor drawing)
PLC cabinet are in optional.

Positioner Diameter

Model

JHY4030S-180

Rated Input Voltage

Single-phase 220V, 50/60HZ

Motor Insulation Class

F

Work Table

1800*800mm(can be customized)

Weight

About 1600kg

Max. Payload

Axial Payload ≤300kg / ≤500kg/ ≤1000kg (>1000kg can be customized)

Repeatability

±0.1mm

Stop Position

Any Position

Main products of our welding positioner
1 axis head-tail rotate type welding positioner
1 axis head-stock vertical rotate welding positioner
1 axis horizontal rotating welding positioner
2 axis P type welding positioner
2 axis U type welding positioner
2 axis L type welding positioner
2 axis lifting L type welding positioner
3 axis horizontal welding positioner
3 axis up-down flip welding positioner
2 axis stock-adjustable head- tail welding positioner
Package :Wooden cases
Delivery time: 40 days after prepayment received

FAQ

Q: Are we a trading company or a manufacturer?
A: We are manufacturer with more than 10 years experience.

Q: Do you have your own welding robotics?
A: Yes. We’re also welding robotics manufacturer.

Q:Can the positioner be put on client’s logo
A:Yes,we can put your own logo on it.

Q: How can you guarantee the product quality?
A: We have strict quality control system in the production process and we welcome clients come to visit us to check the product quality before delivery.

Q: How long is the warranty period?
A: One year.
