high accurate welding positioner with motor servo

Short Description:

The positioner is able to rotate the workpiece to the most appropriate welding position.in order to achieve optimum welding effect.Greatly improve working efficiency.

1.Model: JHY4030P-080

2.Payload: 300kg

3.Turntable diameter: 800 mm

4.Application: pipe welding


Product Detail

Product Tags

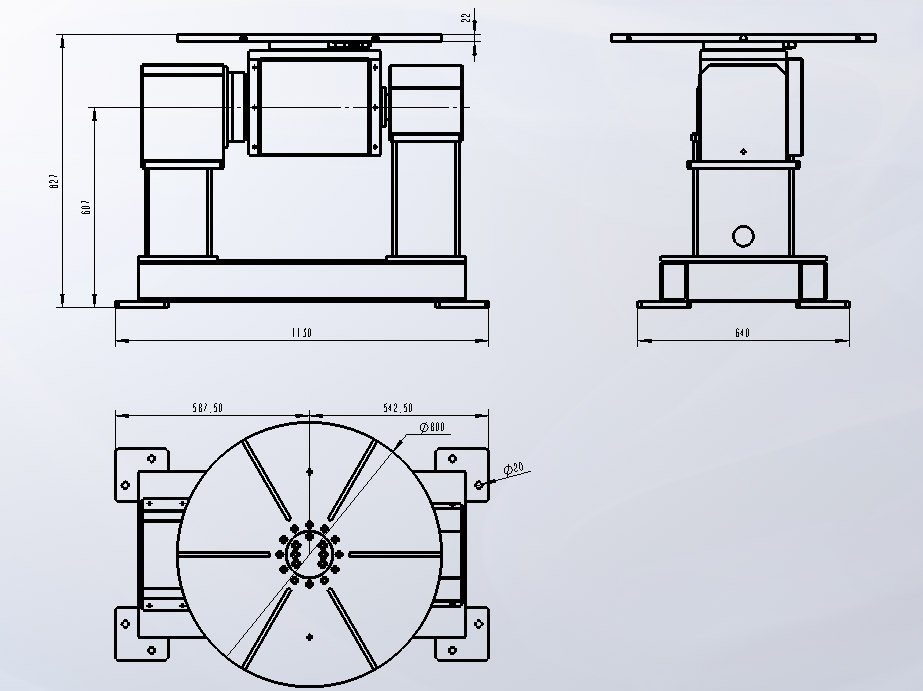

Positioner Dimensions

img-1

Description

2 AXIS SERVO POSITIONER
- Positioners for welding robot systems
-1 axis can be rotated horizontally and the other axis can be flipped up and down for multi-angle welding of complex workpieces
- The positioner uses the same driving device as the robot and is available with high speed, high precision, and high payload
- Provides higher welding quality
- A compact body with improved allowable moment, inertia and load capacity can be realized

Can be adapted to other brands of robots like Fanuc,ABB,KUKA,Yaskawa.(motor drawing need to be offered by customers,then we leave the installation hole based on the motor drawing)
PLC cabinet are in optional.

Positioner Diameter

Model

JHY4030P-080

Rated Input Voltage

Single-phase 220V, 50/60HZ

Motor Insulation Class

F

Work Table

Diameter 800mm(can be customized)

Weight

About 400kg

Max. Payload

Axial Payload ≤300kg / ≤500kg (>500kg can be customized)

Repeatability

±0.1mm

Stop Position

Any Position

Package :Wooden cases
Delivery time: 40 days after prepayment received

FAQ

1.Q: Can i use your positioner for my fanuc/abb/kuka/yaskawa robot?
A:Yes. But the motor need to be offered and installed by yourself.
2.Q: Can your position move in sync with your robot?
A: Yes.
