welding robot cell with pisitioner and walking slide rail

Short Description:

This 7 axes welding robot station consists of one 6 axes welding robot,one 1-axes welding positioner and 1-axes moving ground rail.Greatly improve working efficiency.

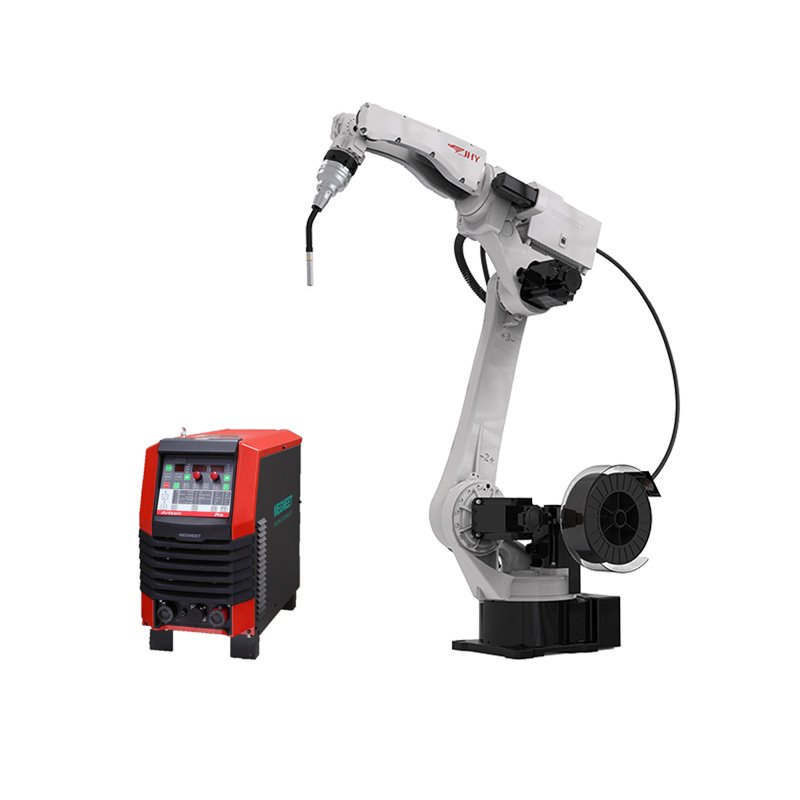

1.6 axes welding robot
2.1-axis head-tail positioner

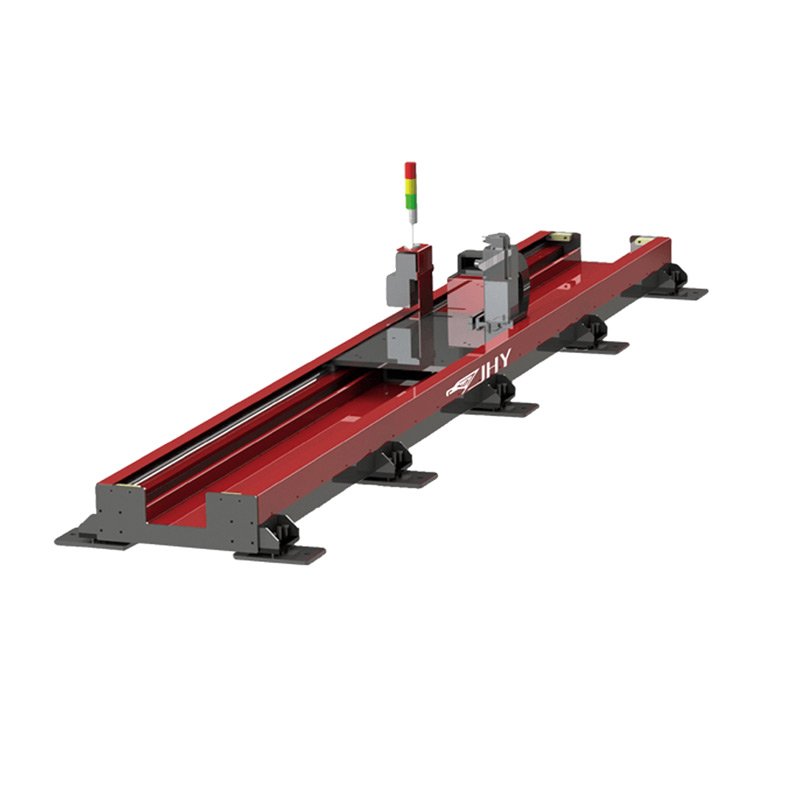

3.1-axis robot moving rail


Product Detail

Product Tags

Description

Usually, the longest reach is 2000mm for a welding robot arm. Once the workpiece is too big to use a 2000mm robot, then the moving ground rail help extend the robot moving length. Control cabinet,welding power source and other equipment can also be designed standing on the rail.
On the other hand, 1-axis head-tail positioner helps to hold the long workpiece and rotate to achieve front and back welding.

Positioner technical parameter

Model

JHY4030A-180 / JHY4030A-250

Rated Input Voltage

Single-phase 220V, 50/60HZ

Motor Insulation Calss

F

Work Table

1800X800mm / 2500X800mm (can be customized)

Weight

About 600kg/ About 800kg

Max. Payload

Axial Payload ≤300kg / ≤500kg/ ≤1000kg (>1000kg can be customized)

Repeatability

±0.1mm

Stop Position

Any Position

Moving rail technical parameter

Model

JHY6030A/ 6050A/ 6100A

Rated Input Voltage

Single-phase 220V,  50/60HZ

Motor Insulation Calss

F

Work Table

500X500mm (can be customized)

Weight

About 450kg

Max. Payload

Axial Payload ≤300kg / ≤500kg / ≤1000kg (>1000kg can be customized)

Repeatability

±0.1mm

Stop Position

Any Position

Package :Wooden cases
Delivery time: 40 days after prepayment received

FAQ

Q: Do I also need to buy a positioner to match with the welding robot?
Answer: That depends on the complexity of your workpieces. If your workpiece is complex, then you need to buy a positioner to match with the welding robot.

Q: What information should I provide so you can recommend a suitable robot for me?
Answer: Please provide the detailed drawings of the workpiece, including the material, thickness, welding position, dimensions and weight of workpiece,.

Q: Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.

Q: Can you send engineer to our country for setting up the machine?
Answer: Yes. We will send engineer to your country to help installation and commissioning, and training. Any problems, we can also provide online service.

Q: I want to know the welding quality for our product, what should I do?
Answer: You can send your samples to our factory to do test welding. After testing welding, we will send the welding video and pictures to you for reference. Also we will send the samples back to you for verification.
