automatic welding robotic solution

Short Description:

This welding robot station consists of one 6 axis welding robot and one 2-axis welding positioner (flip axis and horizontal rotate axis ).Greatly improve working efficiency.

1.6 axis welding robot
MIG welding robot-BR-1510A,BR-1810A,BR-2010A
TIG welding robot:BR-1510B,BR-1920B
Laser welding robot:BR-1410G,BR-1610G

2.2-axis welding positioner
Model:JHY4030U-120


Product Detail

Product Tags


How do you choose a reliable workstation?

Firstly tell us the details of your workpiece,such as workpiece material,thickness,dimensions,weight.
then tell your requirements: the welding seam effect you want, the safety working environments,etc
then we talk about your production process, how do you do the cutting work? is the deviation big between part to part?
At last,we recomend suitable robotics, positioners, robot rails, laser sensors, safety light curtains, safety fences, etc. for different applications and specifications to suit the customer’s production process.

Positioner technical parameter

Model

JHY4030U-120

Rated Input Voltage

Single-phase 220V, 50/60HZ

Motor Insulation Calss

F

Turntable size

1200X650mm (can be customized)

Weight

Refer to actual weight

Max. Payload

Axial Payload ≤300kg / ≤500kg / ≤1000kg(>1000kg can be customized)

Repeatability

±0.1mm

Stop Position

Any Position

Robot workstation Components

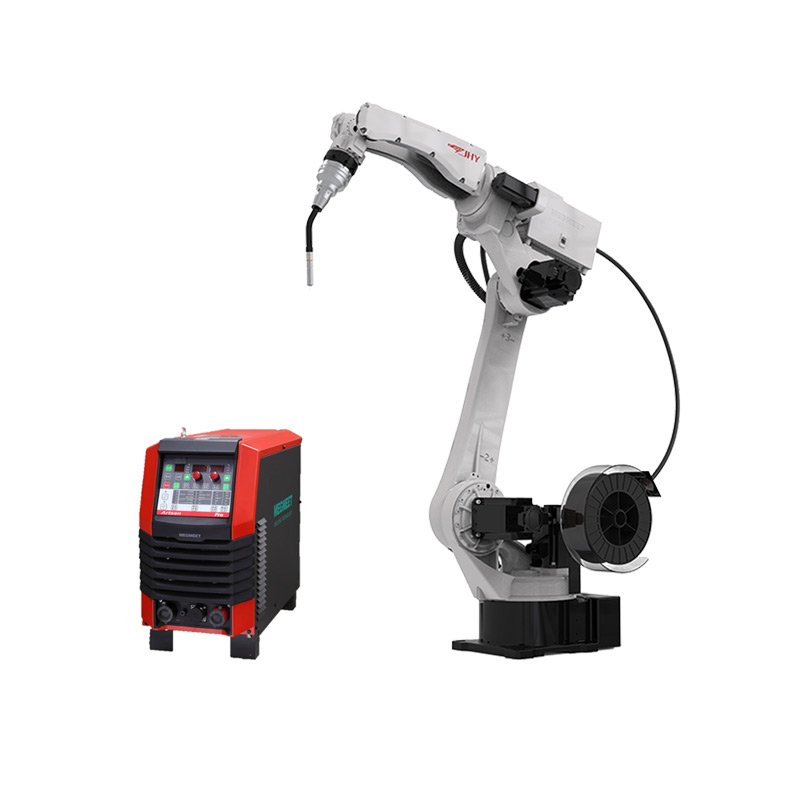

1.Welding robot:
Type: MIG welding robot-BR-1510A,BR-1810A,BR-2010A
TIG welding robot: BR-1510B,BR-1920B
Laser welding robot: BR-1410G,BR-1610G

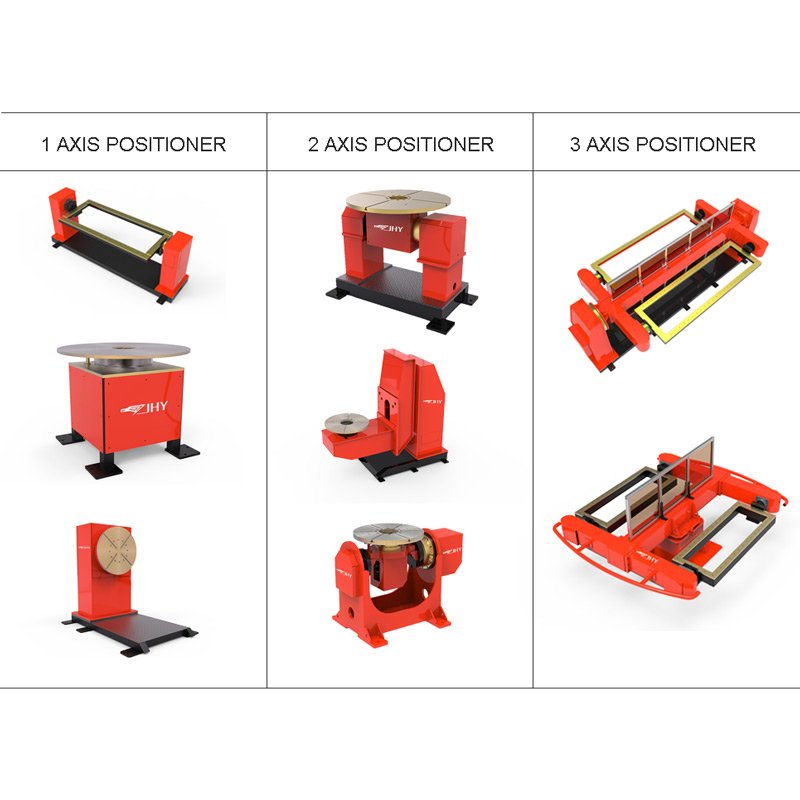

2.Positioner
Different type: 1 axis,2 axis,3 axis positioner, payload: 300/500/1000kg or customized

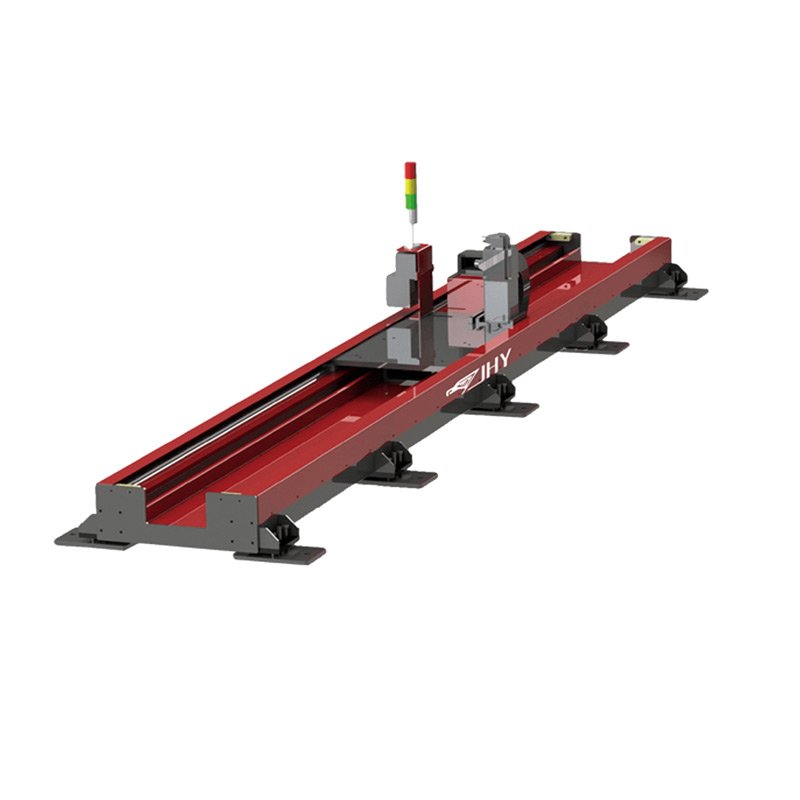

3.Ground rail
Type: 500/1000kg payload, ≥3m length for optional.

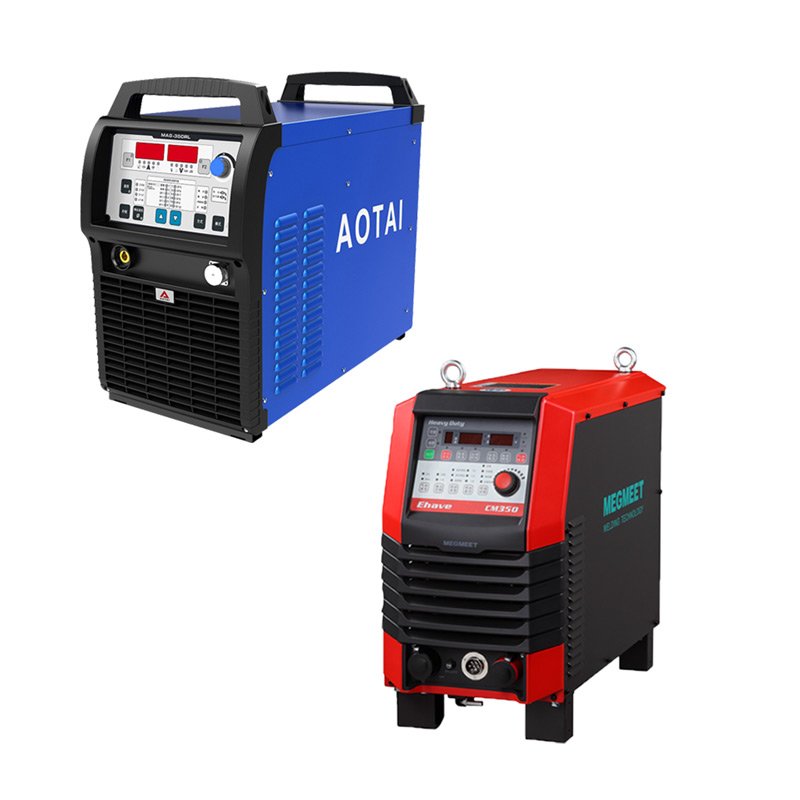

4.Welding machine
Type: 350A/500A welding machine
Character: can be used for carbon steel,stainless steel aluminium and galvanized welding

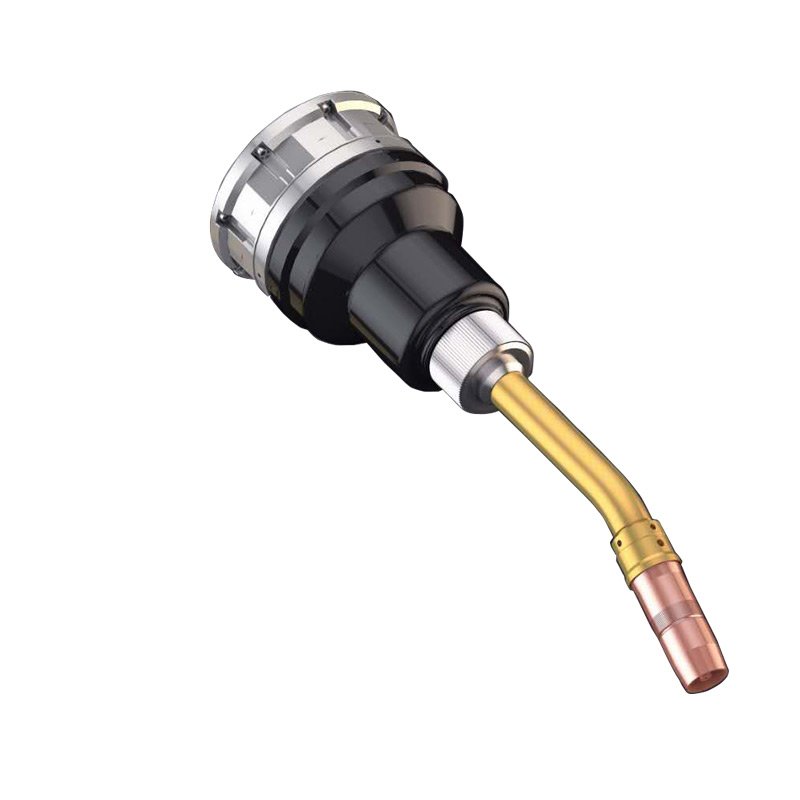

5.Welding torch:
Type: 350A-500A, air-cooled,water-cooled,push-pull

6.Torch clean station:
Type: Automatic pneumatic welding torch cleaner
Function: weld wire cutting,torch cleaning,oil spraying

7.Laser sensor (optional)
Function: weld tracking, positioning.

8.Safety light curtain (optional)
Function: usually installed on the security fence to effectively protect people by blocking the security light curtain

9.Security fence (optional)
Function: Installed on the periphery of the robot workstation to isolate the equipment to protect personnel safety

Package: Wooden cases
Delivery time: 40 days after prepayment received
